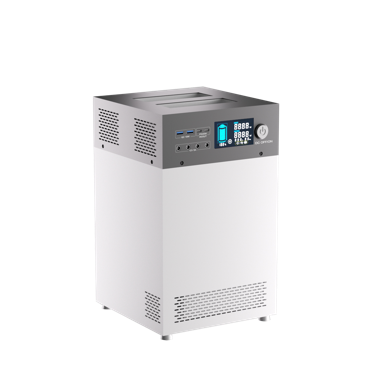

500W-1004Wh Mobile Power Battery

Powered by premium LiFePO₄ battery technology, this energy storage system features a nominal capacity of 1,004.8Wh (3.2V 314Ah/1P1S), delivering safe, reliable, and long-lasting power for your daily needs.

Phone: +8613589069779

WhatsApp: +8613589069779

E-mail: peter@luminpow.com

PRODUCT DESCRIPTION

1kWh LiFePO₄ Energy Storage System Overview

Designed for versatility, it provides a 500W rated AC output at 220/230Vac to support your essential appliances. The system offers flexible charging options: it supports up to 500W of AC charging via a wide input voltage range (150-264Vac, 45~50Hz), alongside a 200W solar (PV) input (12-36V, max 11A), making it an ideal companion for small-scale solar setups.

Built for durability, the battery boasts an impressive cycle life of over 6,000 cycles at 90% DOD and 25℃. It is backed by an industry-leading 5+5 year warranty, ensuring peace of mind for years to come.

Model HM-MPS-1
Battery Type	LiFePO₄
Nominal Energy	1,004.8Wh
Configuration	3.2V314Ah/1P1S
Rated power	500W
AC output voltage	220/230Vac
AC input voltage	150-264Vac
AC input frequency	45~50Hz
AC charging power (max.)	500W
Max. PV input power	200W
PV input voltage	12 -36V
Maximum PV input current	11A
Cycle Life (@25℃,90%DOD)[1]	≥6000Cycles
Warranty Period[2]	5+5 years
Display Mode	Green light: system running / Red light: system alarm
PERFORMANCE SPECIFICATIONS
Weight(kg)	9.5kg
Dimension(WDH)	210140300mm
Installation Method	Wall/Movable
IP Rating	IP21
SECURITY AND CERTIFICATION
Certification(Pack)	UN38.3,MSDS,IEC62619(CB),CE-EMC,IEC63056
Certification(Cell)	UN38.3,MSDS,IEC62619,CE,UL1973,UL2054
Protection	BMS and breaker
ENVIRONMENTAL SPECIFICATIONS
Charging Temperature Range	0℃~60℃
Discharging Temperature Range	-20℃~60℃
Operating Temperature	-30~60℃ (derating above 45℃)
Storage Temperature	0~35℃
Operating Humidity	≤90%(non-condensing)
Operating Altitude	≤2000m

1.Battery cell life standard，using cells that meet the requirements of this standard.

2.Conditions apply，refer to Luminpow Warranty Agreement.

Text and images correspond to the current state of technology at the time of printing, subject to modifications.All information is without guarantee despite of careful editing-liability excluded
