120W 12V Monocrystalline Solar Panel

120W 12V Monocrystalline Solar Panel

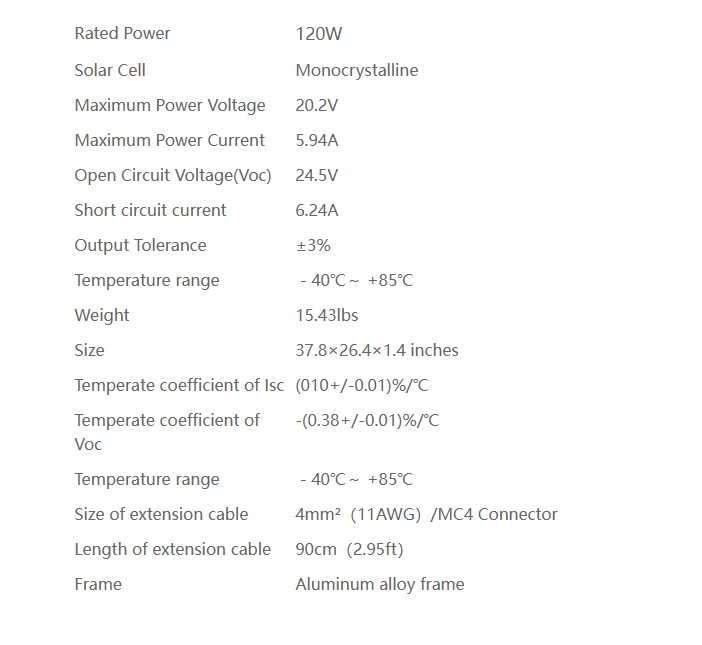

Rated Power:120W
Solar Cell:Monocrystalline
Maximum Power Voltage:20.2V
Maximum Power Current:5.94A
Open Circuit Voltage(Voc):24.5V
Short circuit current:6.24A
Output Tolerance:±3%
Temperature range:-40℃~ +85℃
Weight:15.43lbs
Size:37.8×26.4×1.4 inches
Temperate coefficient of Isc:(010+/-0.01)%/℃
Temperate coefficient of Voc:-(0.38+/-0.01)%/℃
Temperature range:-40℃~ +85℃
Size of extension cable:4mm²(11AWG)/MC4 Connector
Length of extension cable:90cm(2.95ft)
Frame:Aluminum alloy frame
Contact Us

PRODUCT DESCRIPTION

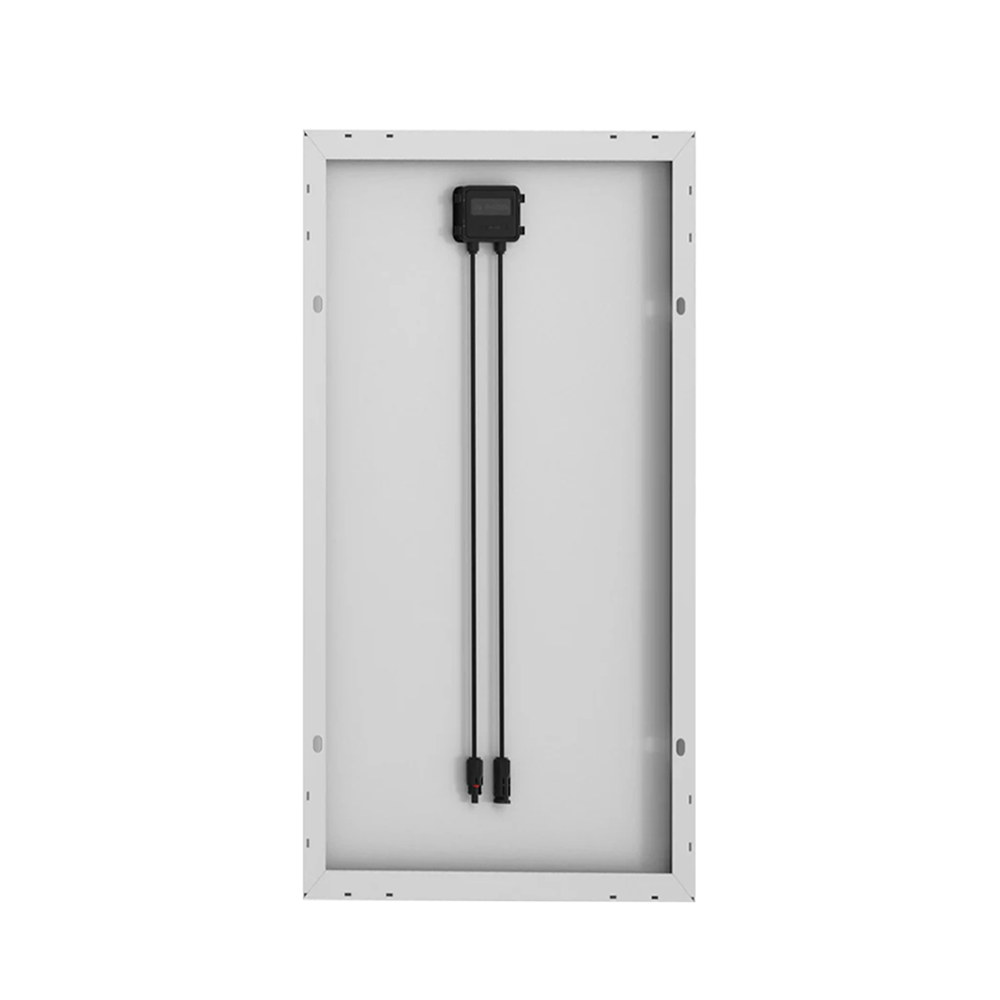

120W 12V Monocrystalline Solar Panel

This 120W 12V Monocrystalline Solar Panel is primarily used on off-grid situations that include RV, boat, sailboat, yacht, truck, cabin, camper, tent, trailer, golf cart. Daily output 600WH depends on the sunlight availability. Each solar panel comes with a pair of 35 inches cables. By-pass diodes are pre-installed in waterproof IP-65 rated junction box to minimize power drop caused by shade and ensure excellent performance in low-light environments. Withstand high wind (2400Pa) and snow loads (5400Pa), the surface is made up of 3.2mm low Iron glass, the monocrystalline modules are framed by 35mm width aluminum alloy, which is 2~5mm wider than the other’s.

120W 12V
