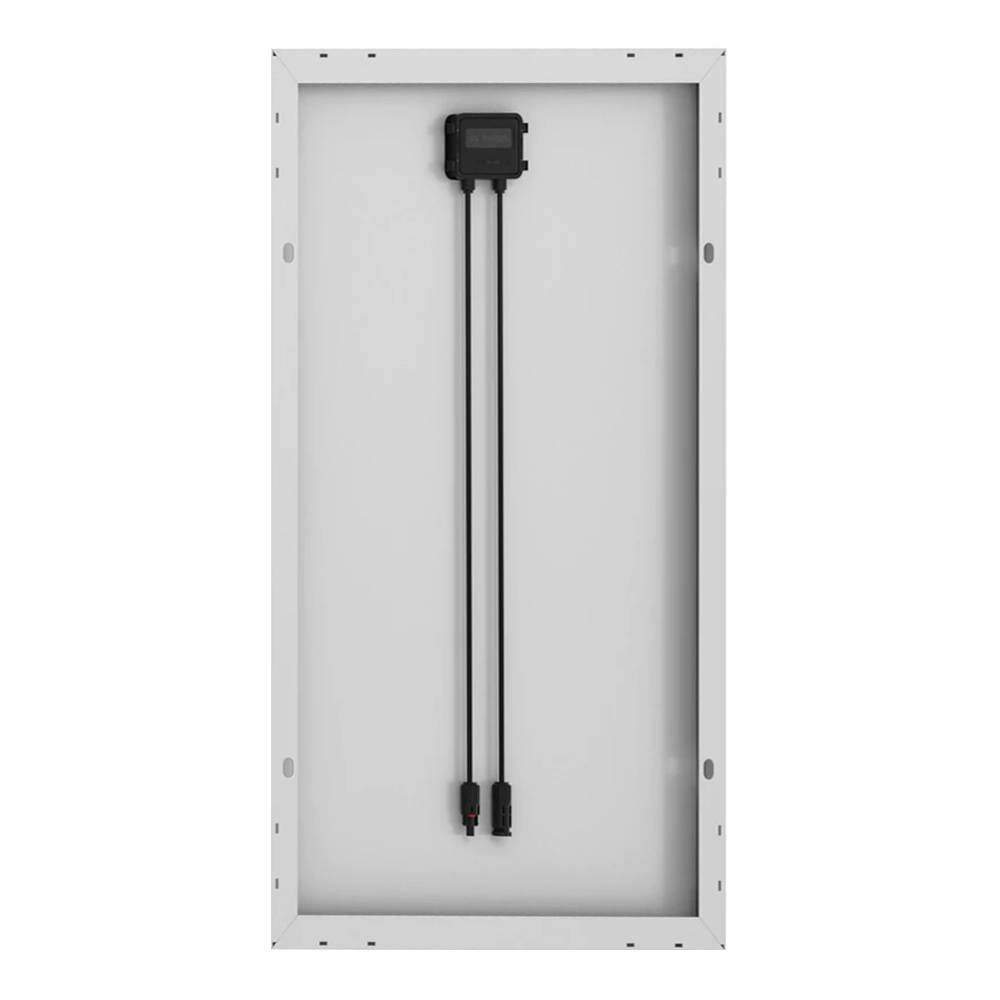

195W 12V Monocrystalline Solar Panel

195W 12V Monocrystalline Solar Panel

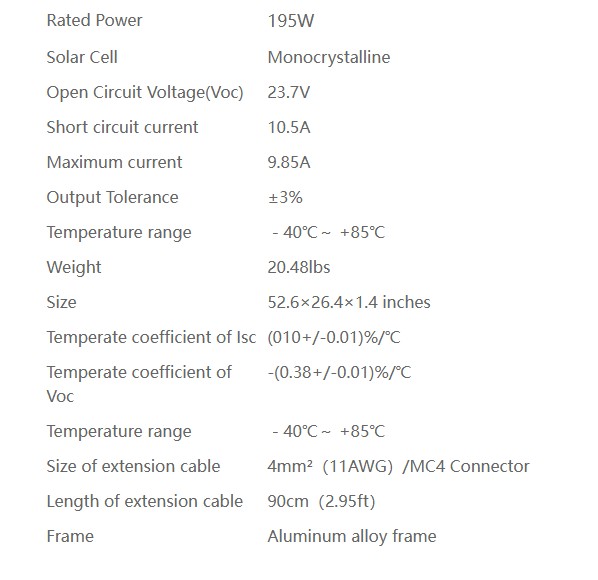

Rated Power:195W
Solar Cell:Monocrystalline
Open Circuit Voltage(Voc):23.7V
Short circuit current:10.5A
Maximum current:9.85A
Output Tolerance:±3%
Temperature range:-40℃~ +85℃
Weight:20.48lbs
Size:52.6×26.4×1.4 inches
Temperate coefficient of Isc:(010+/-0.01)%/℃
Temperate coefficient of Voc:-(0.38+/-0.01)%/℃
Temperature range:-40℃~ +85℃
Size of extension cable:4mm²(11AWG)/MC4 Connector
Length of extension cable:90cm(2.95ft)
Frame:Aluminum alloy frame
Contact Us

PRODUCT DESCRIPTION

195W 12V Monocrystalline Solar Panel


Luminpow 195W 12V monocrystalline silicon solar panel is primarily designed for off-grid applications. Equipped with a lithium iron phosphate battery pack, it’s an ideal choice as a power source for home energy storage, suitable for homes, cabins, and other similar applications. The daily power output is 900 watt-hours, depending on the amount of sunlight. Each solar panel comes with two 35-inch long cables. A pre-installed bypass diode in the IP-65 waterproof junction box reduces power loss due to shading and ensures excellent performance in low-light conditions. It can withstand high wind pressure (2400 Pa) and snow load (5400 Pa), features a 3.2 mm low-iron glass surface, and the monocrystalline silicon module is constructed with a 35 mm wide aluminum alloy frame, which is 2 to 5 mm wider than other similar products.

195W 12V
