170W 12V Monocrystalline Solar Panel

170W 12V Monocrystalline Solar Panel

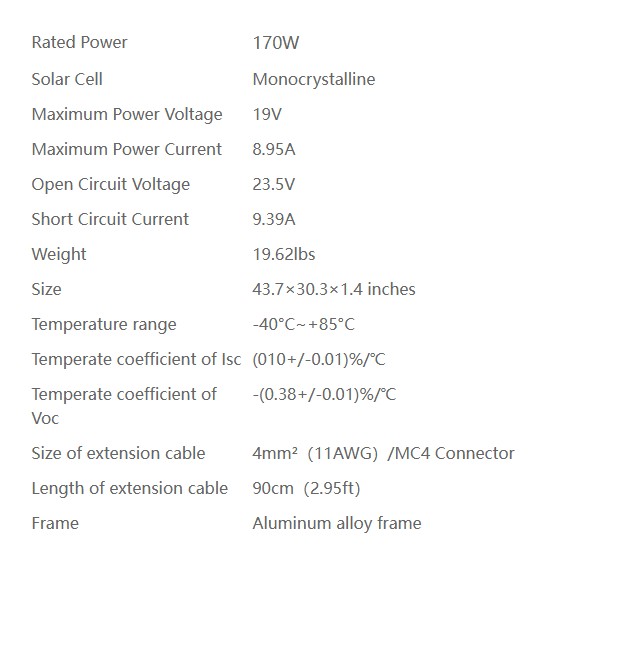

Rated Power:170W
Solar Cell:Monocrystalline
Maximum Power Voltage:19V
Maximum Power Current:8.95A
Open Circuit Voltage:23.5V
Short Circuit Current:9.39A
Weight“”19.62lbs
Size:43.7×30.3×1.4 inches
Temperature range:-40°C~+85°C
Temperate coefficient of Isc:(010+/-0.01)%/℃
Temperate coefficient of Voc:-(0.38+/-0.01)%/℃
Size of extension cable:4mm²(11AWG)/MC4 Connector
Length of extension cable:90cm(2.95ft)
Frame:Aluminum alloy frame
Contact Us

PRODUCT DESCRIPTION

170W 12V Monocrystalline Solar Panel

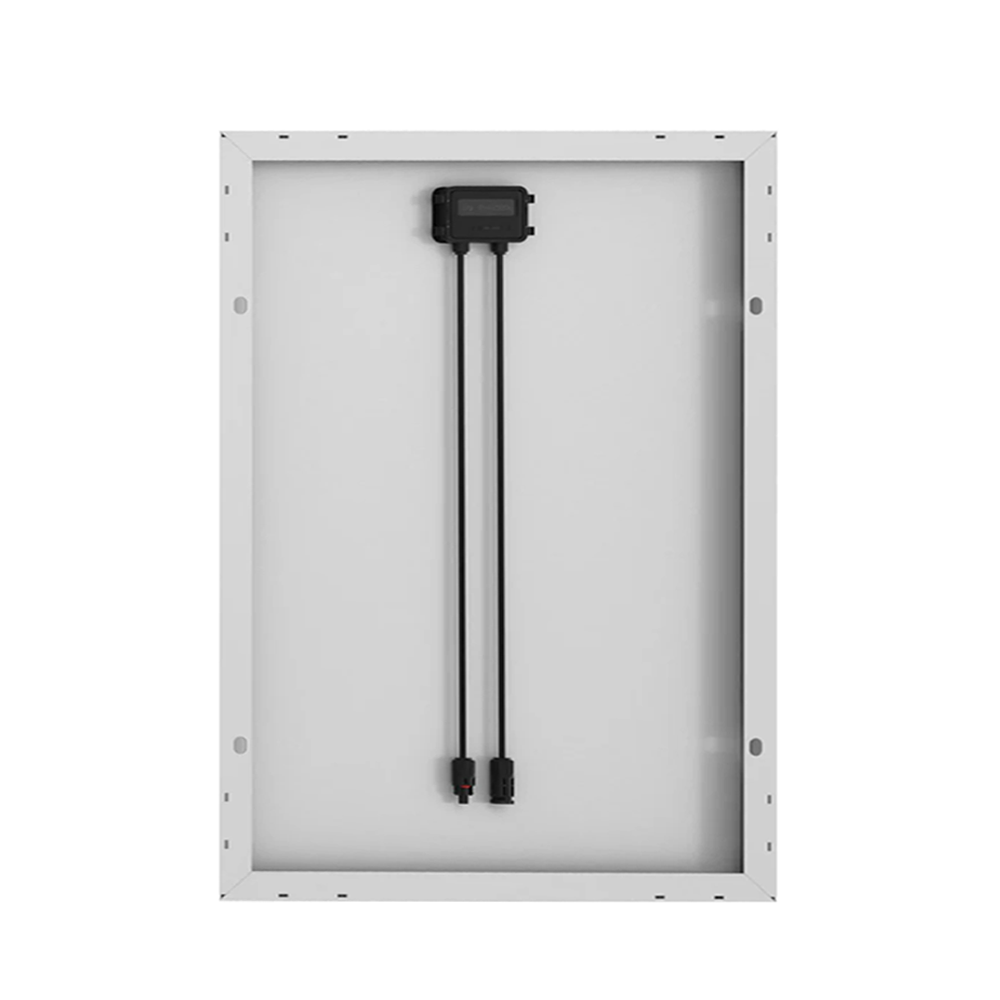

Hemuvision 170W 12V monocrystalline solar panel is primarily used in off-grid applications such as RVs, boats, sailboats, yachts, trucks, cabins, campers, tents, trailers, and golf carts, and is also suitable for homes and cottages. It can generate up to 800WH of electricity per day, depending on sunlight conditions. Each solar panel comes with a pair of 35-inch cables. The IP-65 waterproof junction box is pre-installed with bypass diodes to minimize power loss due to shading and ensure excellent performance in low-light conditions. The panel can withstand high wind pressure (2400Pa) and snow load (5400Pa), features a 3.2mm low-iron glass surface, and the monocrystalline modules are secured by a 35mm wide aluminum alloy frame, which is 2-5mm wider than other similar products.

170W 12V
