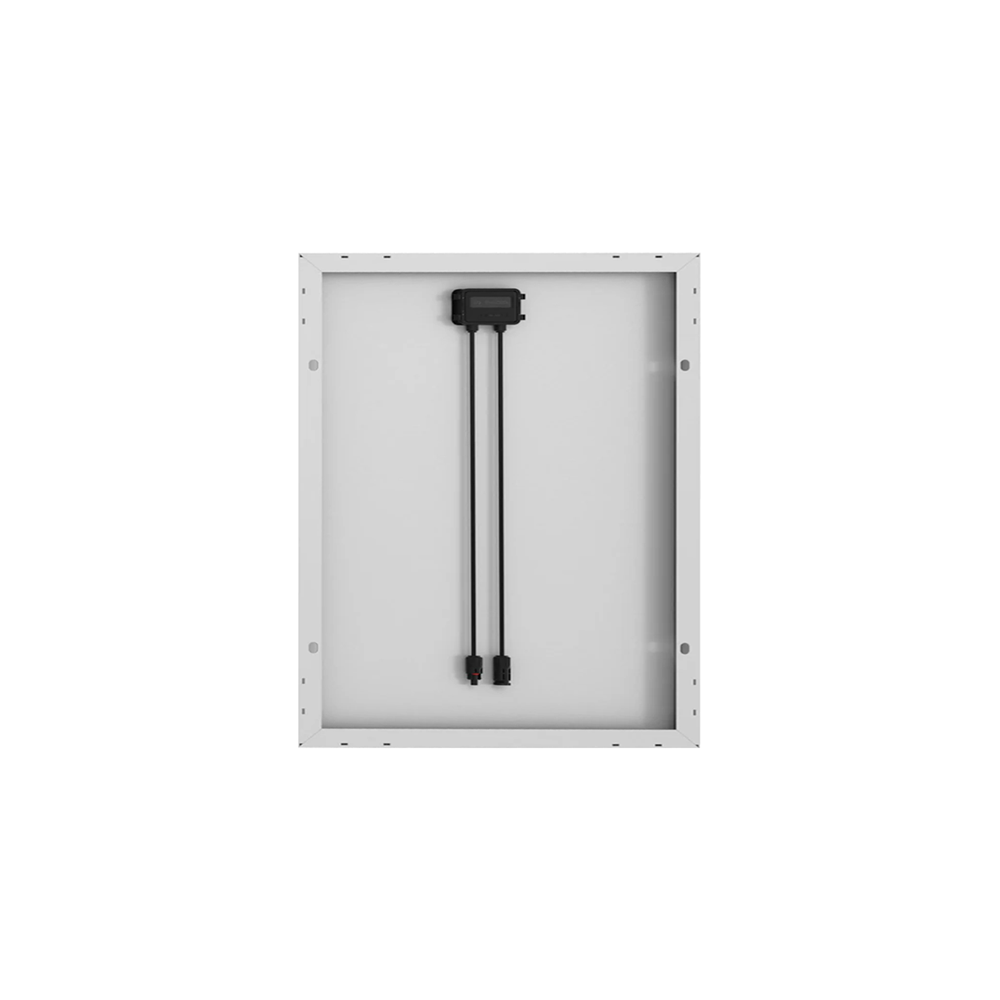

100W 12V Monocrystalline Solar Panel

100W 12V Monocrystalline Solar Panel

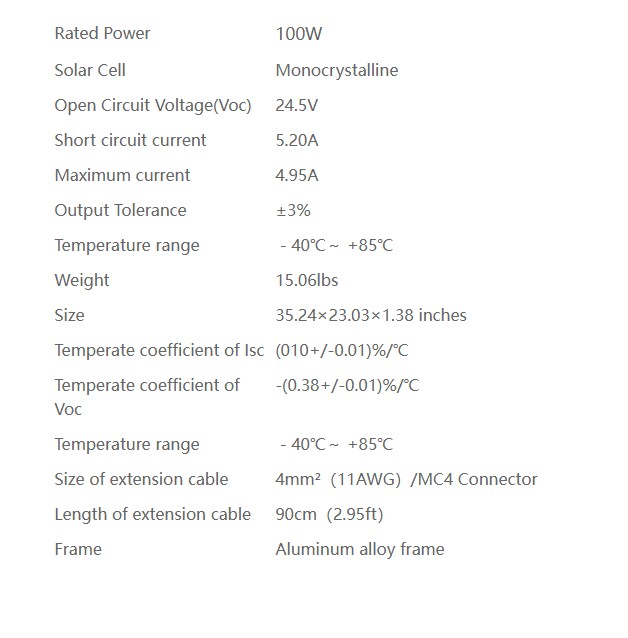

Rated Power:100W
Solar Cell:Monocrystalline
Open Circuit Voltage(Voc):24.5V
Short circuit current:5.20A
Maximum current:4.95A
Output Tolerance:±3%
Temperature range:-40℃~ +85℃
Weight:15.06lbs
Size:35.24×23.03×1.38 inches
Temperate coefficient of Isc:(010+/-0.01)%/℃
Temperate coefficient of Voc:-(0.38+/-0.01)%/℃
Temperature range:-40℃~ +85℃
Size of extension cable:4mm²(11AWG)/MC4 Connector
Length of extension cable:90cm(2.95ft)
Frame:Aluminum alloy frame
Contact Us

PRODUCT DESCRIPTION

100W 12V Monocrystalline Solar Panel

This 100W 12V Monocrystalline Solar Panel is primarily used on off-grid situations that include RV, boat, sailboat, yacht, truck, cabin, camper, tent, trailer, golf cart. Daily output 500WH depends on the sunlight availability. Each solar panel comes with a pair of 35 inches cables. By-pass diodes are pre-installed in waterproof IP-65 rated junction box to minimize power drop caused by shade and ensure excellent performance in low-light environments. Withstand high wind (2400Pa) and snow loads (5400Pa), the surface is made up of 3.2mm low Iron glass, the monocrystalline modules are framed by 35mm width aluminum alloy, which is 2~5mm wider than the other’s.

100W 12V
