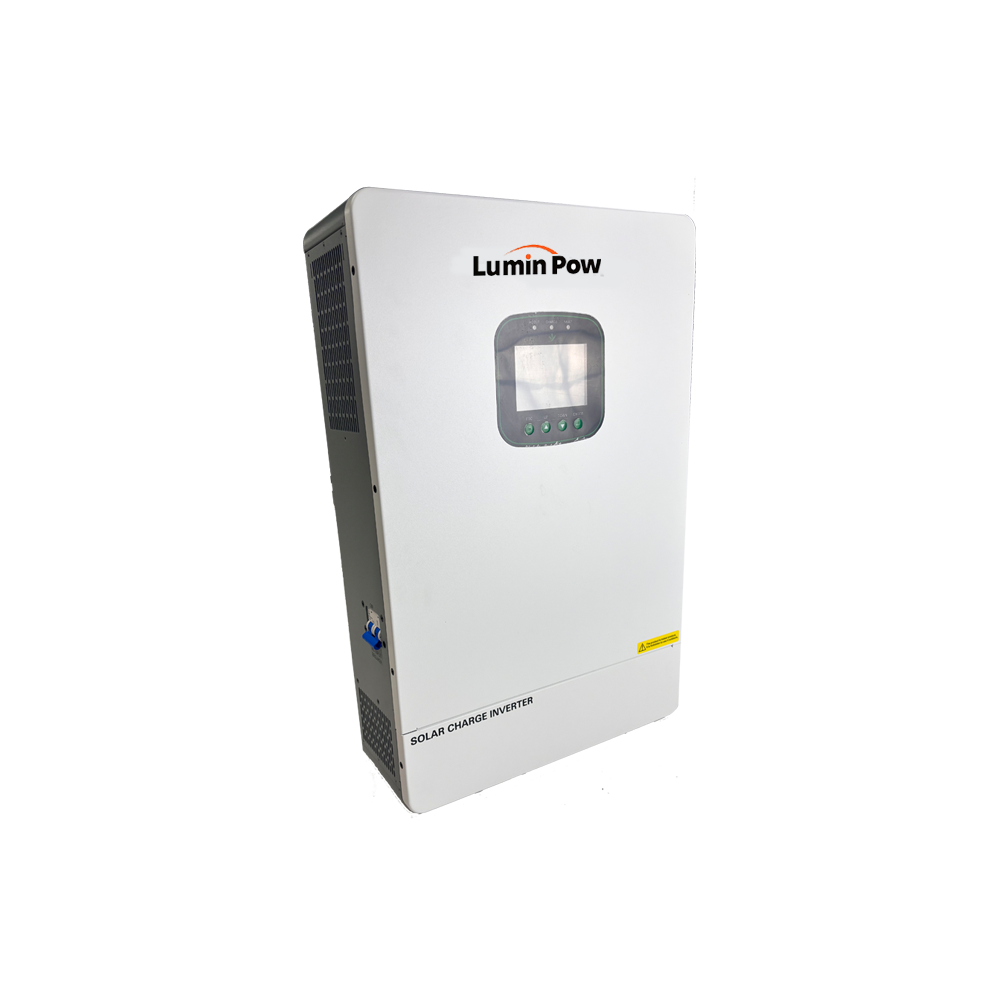

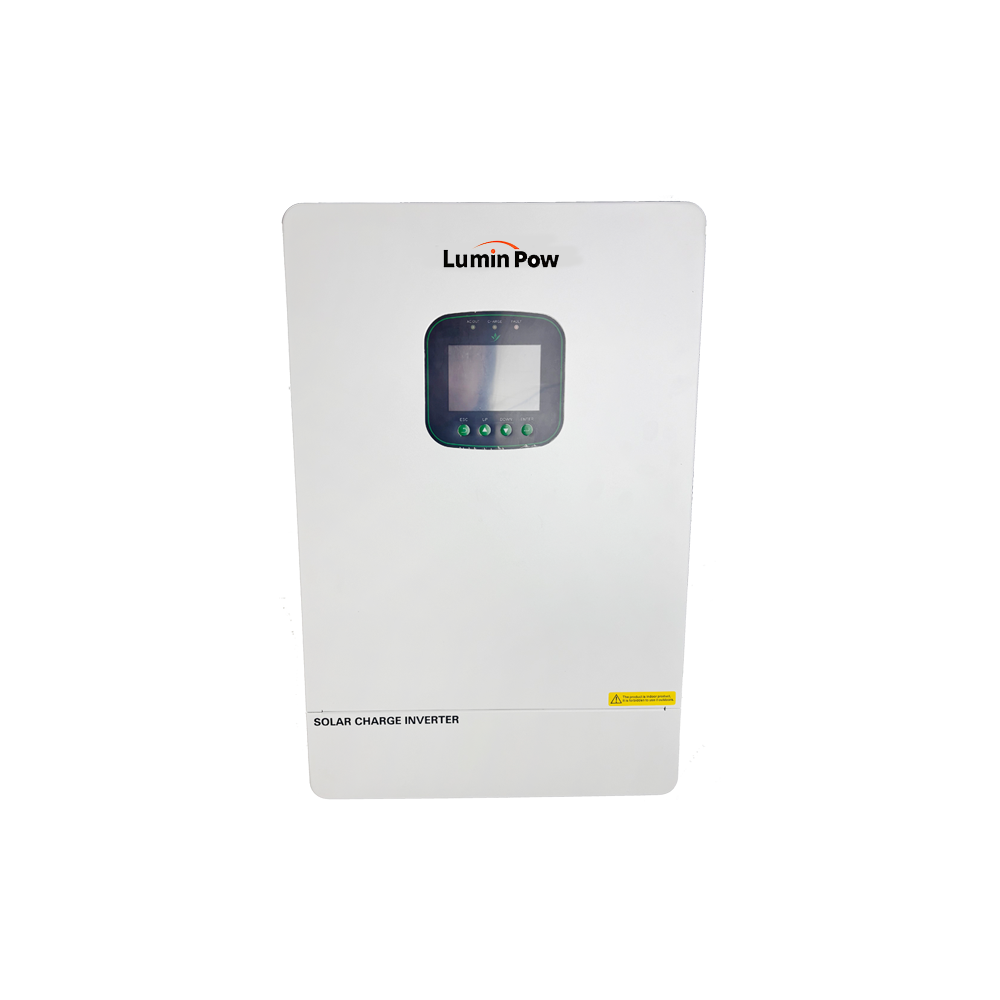

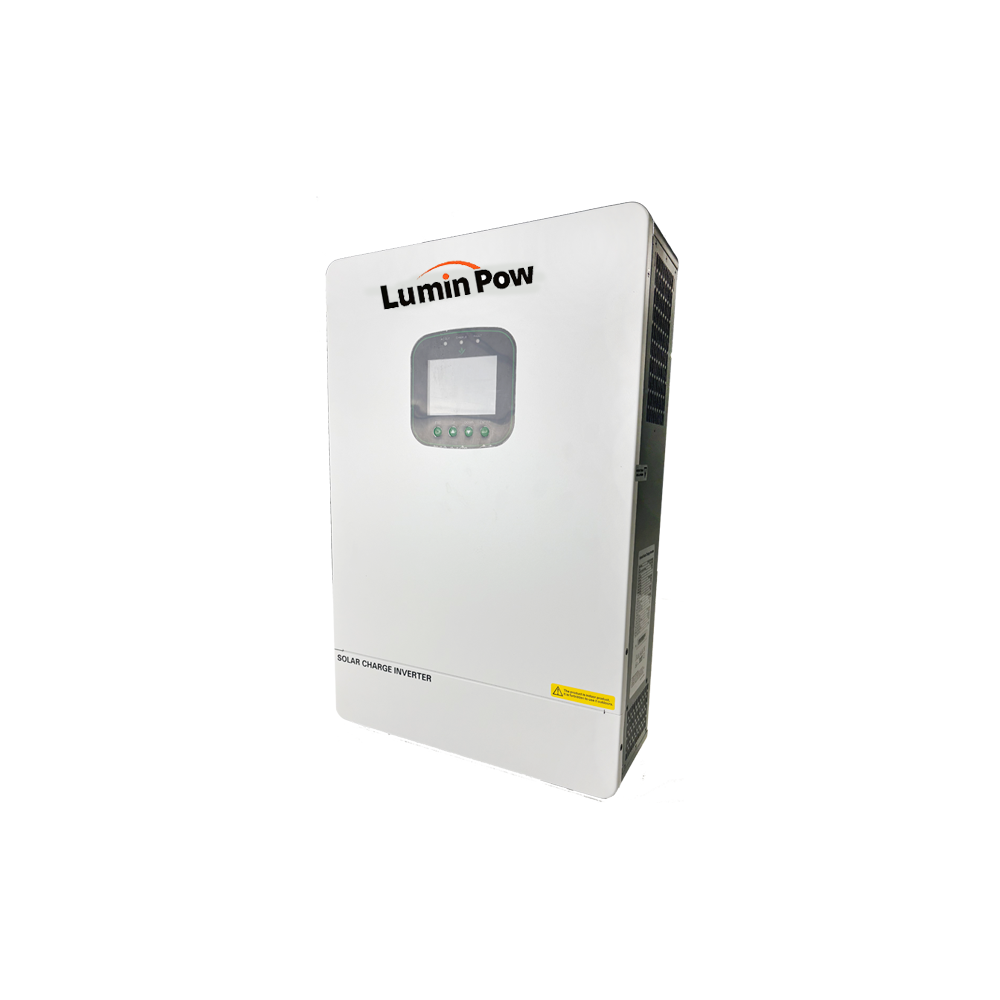

12KW Hybrid Solar Charge Inverter

Fully digital voltage and current dual-loop control, advanced SPWM technology, and pure sine wave output.
3 output modes: power priority, battery priority, and photovoltaic priority; 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains and solar charging.
Designed with an LCD screen and 3 LED indicators for dynamic display of system data and operating status. The LCD can monitor all data at any time. Multiple intelligent protections, such as PV input current/power limiting protection, PV input overvoltage protection, PV night reverse current protection, and multiple cooling fans to prevent overheating.
Complete protection, including short-circuit protection, overvoltage and undervoltage protection, overload protection, reverse polarity protection, etc.

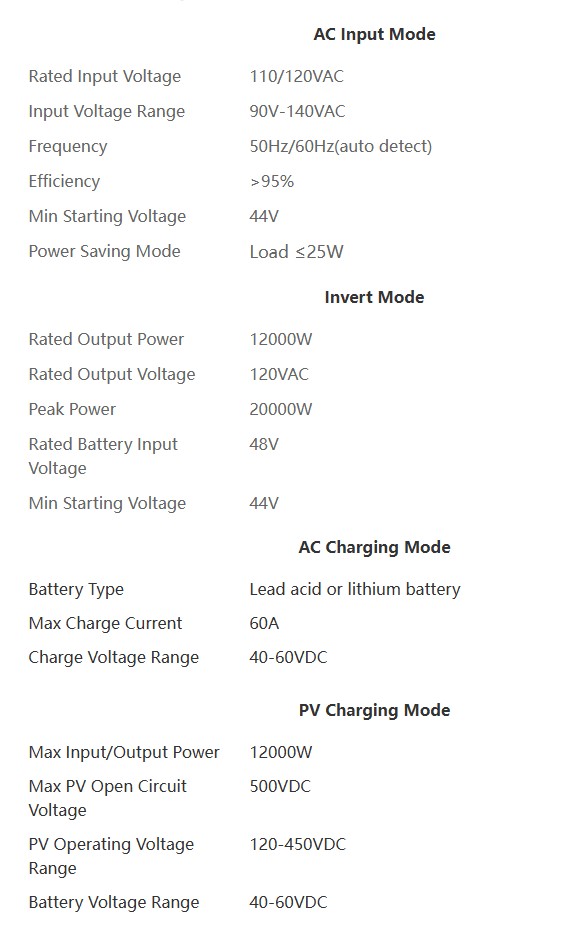

Maximum PV input power: 12000W, PV input voltage range: 120-500V DC, maximum MPPT charging current: 100A, rated output power: 12000W, maximum peak power: 20000W, rated output voltage: 120/240Vac (split-phase/single-phase).
